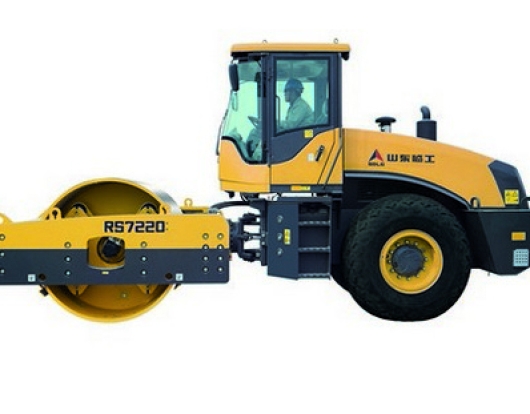

Xe lu rung RS7220

Mua Hàng Tại Miền Nam:

Số 27A/11 Xa lộ Hà Nội, Khu phố Hiệp Thằng, Phường Đông Hòa, TP Hồ Chí Minh, Việt Nam

Liên Hệ: 0965 264 041 - 0869 006 599 - 0977 203 388

Item	Parameter
Dimension
LXWXH（A×B×C）	6473×2460×3185mm
Vibration wheel width(D)	2150mm
Vibration wheel diameter(E)	1600mm
Tread(F)	1555mm
Wheelbase(G)	3441mm
Min.ground clearance(H)	410mm
Min.turning radius(I)	6600mm
Compacting width	2150mm
Theoretical gradeability	0.4
Steering angle(J)	35°
Performance of the machine
Working weight	22000kg
Front wheel weight distribution	14600kg
Rear wheel weight distribution	7400kg
Nominal vibration amplitude(h/l)	2.0/1.0mm
Vibration frequency（l/h）	28/33Hz
Vibratioin force（h/l）	351/271kN
Static linear load	665N/cm
Engine
Model	Deutz BF6M2012C
Type	Inline,water cooling,4stroke,direction injection
Rated power/speed	147kW/2300r/min
Displacement	6.057L
Cylinder borexstroke	101/126mm
Emission standard	EC Stage II & EPA Tier II
Min fuel-consume ratio	≤235g/kWh
Max.torquew	743Nm
Transmission
Gear shift	forward 2/reverse 2
F/RⅠspeed	0～4.5km/h
F/R Ⅱspeed	0～12km/h
Brake system
Service brake	Stop at neutral hydraulic position
Parking brake	Put P down,brake at electric cut-off
Steering system
Type	Full hydraulic steering system
System pressure	16MPa
Swing angle	12°
Vibration system
Type	Closed-loop
Pressure	35MPa
Volume of the oil
Fuel oil	270L
Hydraulic oil	146L
Engine	20L
Vibration wheel	27L
Axle	20L
